    Home Hinges Self Closing & Soft Closing Hinges IDH3
    spring hinges for self closing doors
    Self Closing Hinges & Soft Closing Hinges IDH2 $162.00 – $242.00Price range: $162.00 through $242.00
    Back to products
    hidden hinges
    Self Closing & Soft Closing Concealed Hidden Hinges $267.00 – $460.00Price range: $267.00 through $460.00

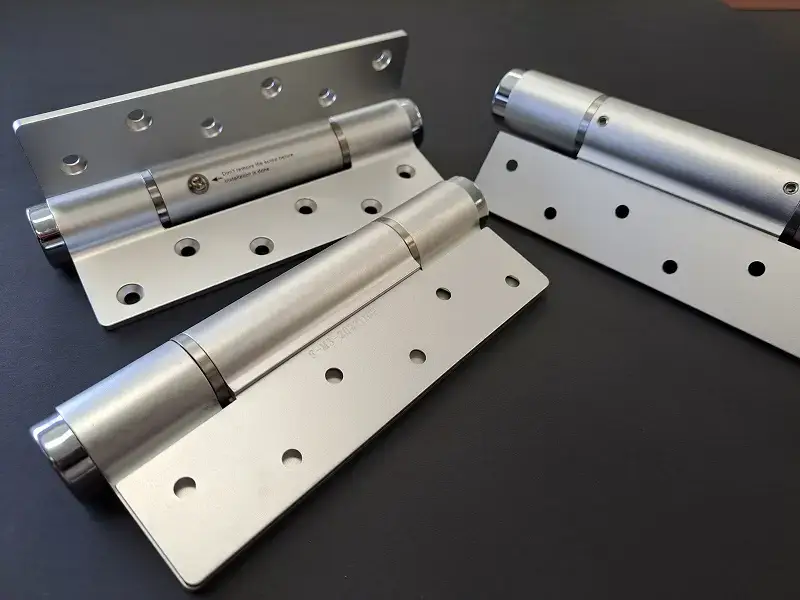

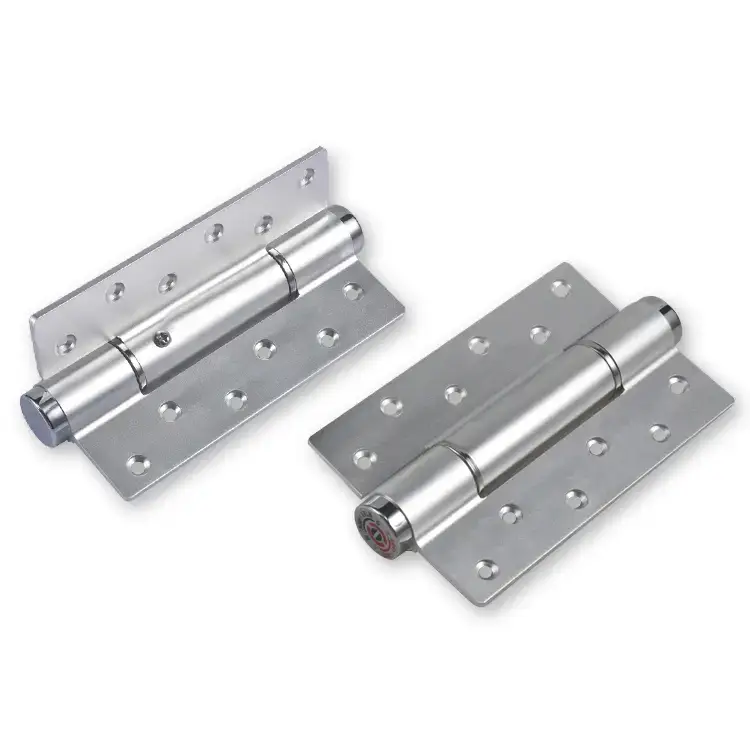

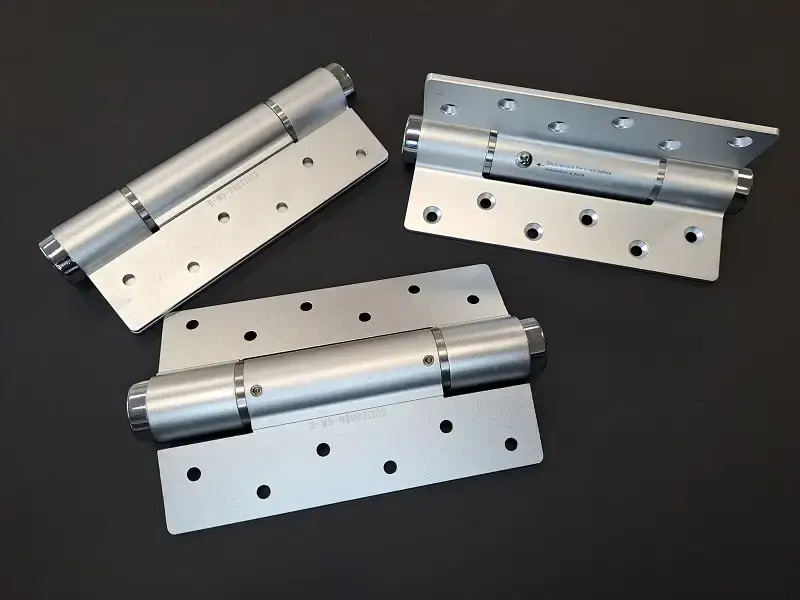

    Self Closing & Soft Closing Hinges IDH3

    $182.00 – $274.00Price range: $182.00 through $274.00

    Self-Closing Hydraulic Hinges:

    • Automatically pull the door closed after it’s opened.
    • Ideal for interior doors, cabinet doors, and gates.
    • Often use a spring mechanism to provide the closing force.

    Soft-Closing Auto Close Hinges:

    • Use a hydraulic or pneumatic mechanism to slow down the door’s movement just before it closes.
    • Prevent slamming and reduce wear and tear on the door and frame.
    • Commonly used in cabinets and high-traffic areas.

    Combination Self-Closing and Soft-Closing Hinges:

    • Offer both automatic closing and gentle closing action.
    • Perfect for modern homes and offices where convenience and quiet operation are priorities.

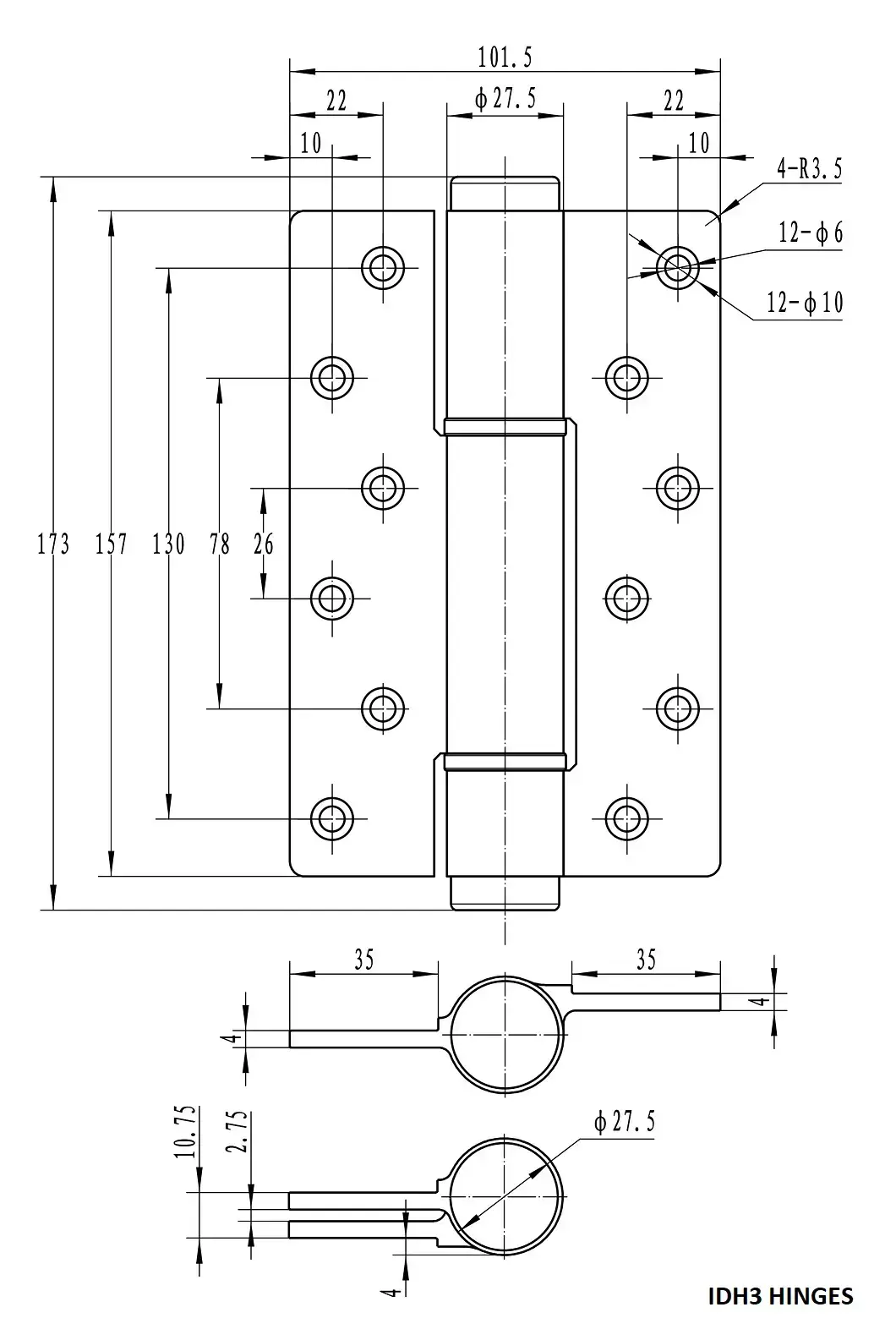

    Features:

    • Door weight: 50/70/90kgs.
    • Door width: 800~1200mm.
    • Door thickness: 40~60mm.
    • Max door height: 2400mm
    • Opening angle: 180°.
    • There is no difference in right or left opening, it can be used for both; no need to determine door handing.
    • Colour: Silver.
    • Lifespan: 200,000 cycles.
    • Please make the right choice; returns are not accepted.

    Please note: In some cases, due to the security settings of your connection, you may not be able to make a purchase here. In such a case, please let us know by phone or send a message; we wiil call you back.

    Compare
    Add to wishlist
    🛒 Buy on Our New Website
    107 People watching this product now!
    SKU: IDH3 Category: Hinges Tags: auto hinges, hydraulic hinges, Self Closing Hinges
    Follow:
    • Description
    • Additional information
    • Shipping & Delivery
    • Installation
    Description

    Hydraulic hinges and spring hinges

    Self closing hydraulic hinges are an innovative door hardware that allows doors to close more smoothly without the need for traditional door closers. Self-closing hinges have a compact design that combines door closer, door stopper, positioner and shock absorber in one body. It eliminates hydraulic door closer arms that are not compatible with later systems such as fly screens or security doors. Its simple and beautiful design is compatible with different door styles.

    Self closing hydraulic hinges may also offer a soft-close feature; However, not all self-closing hinges have a soft closing feature.
    Generally, they are of two types: spring hinges and hydraulic hinges.
    In systems where both spring hinges and hydraulic hinges are used together, the spring hinge closes the door, and the hydraulic hinge acts as a buffer and performs the slow closing task.

    The combination of spring hinge and hydraulic hinge allows even heavy doors to operate with the desired features. At the same time, it has a high advantage over other systems as it provides very easy adjustment.
    Our spring hinge does not require any adjustment, and our hydraulic hinges have a single setting for slow & soft closing feature. Therefore, it is easy to install and even easier to adjust.
    Ideal for all types of casement door applications, including heavy-duty commercial and industrial doors; wooden doors and aluminium doors…

    E Type Hinges

    E type butt hinges are more suitable for heavy duty than F type hinges.

    E type hinges, in self closing hinge systems, do not have the ability to lift and remove the door easily, as do F type hinges. The removable pin in standard butt hinges cannot be removed in self-closing butt hinges; the pin is fixed. When you want to remove the door, the door can be removed by removing the screws on the hinges.

    Additional information
    Weight 3 kg
    Dimensions 20 × 20 × 8 cm
    Color

    Silver

    Force

    50kg

    ,

    70kg

    ,

    90kg

    Shipping & Delivery
    wd-ship-1
    wd-ship-2

    WARRANTY TERMS AND CONDITIONS:

     Ideal Hardware (“Company” or “Seller”) warrants its products to be free from defects in material and workmanship for one (1) year period from the date of purchase. The Company will, at its option, repair or replace any products which in the opinion of the Company are found to be defective, provided said products are returned to Ideal Hardware, freight prepaid. The Company reserves the right to inspect the installation of defective products before any removal and return of any such products.

    This warranty is limited to Ideal Hardware’s option to the repair, or at Ideal Hardware’s option, the replacement of any products proven to be faulty in manufacture or materials, with the same or equivalent product free of charge. Labour charges, transportation and other costs associated with the replacement or re-installation of the parts or product are excluded from this warranty and will not be paid by Ideal Hardware.

    This warranty excludes deterioration of coated finishes, unless those finishes are specifically listed in the product warranty.

    Consumers do not have a right to return a product if they:

    • changed their mind and no longer want the product,
    • ordered the wrong product.

    Ideal Hardware accepts no liability under warranty for the following additional exclusions or conditions:

    1) The warranty shall not cover any defect or damage which may be caused or partly caused by or arise through:

    i) Failure on the part of the Buyer to properly install or maintain any goods. Inaccurate or incorrect site or operational specifications;

    ii) Use of replacement parts other than authorised parts; repair or modification other than as authorised by Ideal Hardware;

    iii) Failure on the part of the Buyer to follow any instructions or guidelines provided by the Seller;

    iv) Any use of any goods otherwise than for any application specified on a quote or order form accepted by Seller;

    v) The continued use of any goods after any defect becomes apparent or would have become apparent to a reasonably prudent operator or user;

    vi) Fair wear and tear, or any accident or act of God.

    viii) The warranty shall cease and the Seller shall thereafter in no circumstances be liable under the terms of the warranty if the goods are repaired, altered or overhauled without the Seller’s consent.

    iix) In respect of all claims the Seller shall not be liable to compensate the Buyer for any delay in either replacing or repairing the goods or in properly assessing the Buyer’s claim.

    2) For goods not manufactured by the Seller the warranty shall be the current warranty provided by the manufacturer of goods, if any, and to the extent that such warranty can be transferred by Seller to Buyer.

    3) No other warranties, express or implied, are made with respect to the products or services including, but not limited to, any implied warranty of merchantability or fitness for a particular purpose.

    This warranty does not exclude, restrict or modify any statutory rights.

    Ideal Hardware shall in no event be liable for any incidental or consequential damages for breach of any warranty.

    Installation

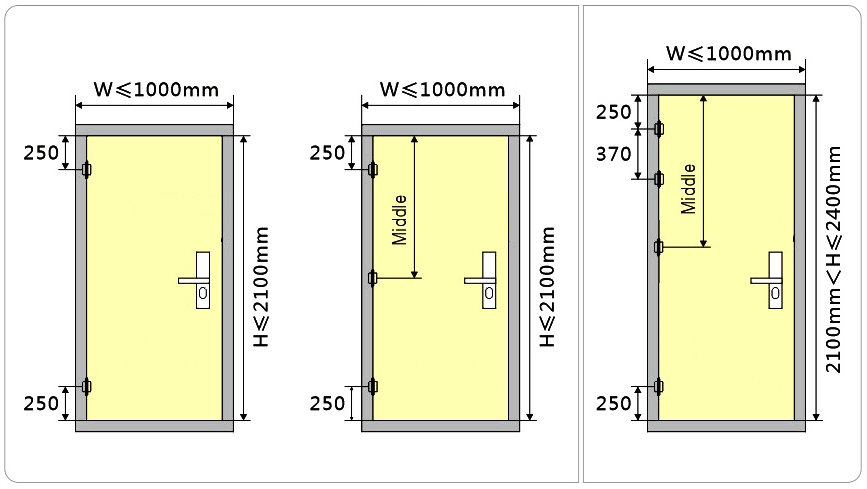

    How Many Hinges Do I Need?

    This depends on the style of hinges, and most doors have three hinges depending on their size. However, you should measure your door to determine how many hinges you need. You need one hinge for every 762mm (30") of door height. Most doors are around 2200mm (90") high and above so have three hinges. Particularly large doors ranging from 920mm (36") to 1200mm (47") in width may benefit from one or more additional hinges for extra strength. The additional hinge helps provide greater durability. It supports the weight of the larger door, keeping the door and frame in better condition. The slow closing resistance applied in the opposite direction by the hydraulic hinge against the closing force applied by the spring hinge may cause the doors to bend. Therefore, it is recommended to use at least three hinges if possible.

    The most common internal door sizes in Australian homes are 820mm wide and 2040mm high, although standard door sizes are 520mm to 920mm wide. As many new homes are now being built with higher ceilings, many doors are available as internal doors up to 2340mm high as well as the standard height of 2040mm.

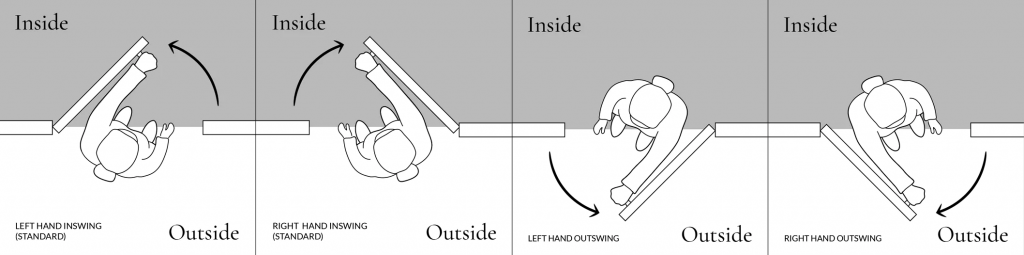

    How to Determine Door Handing

    To choose the right hinge style and location, you must determine the correct door handling. Door handing is the direction your door opens. Swinging doors can be outswing, inswing, left-hand reverse, etc. Determine the door handling for entry and exterior doors from the exterior of your property. For interior doors, stand outside of the room looking at the door. Here’s a breakdown of the types of handling:

    • Hinges on the left = left handling
    • Hinges on the right = right handling
    • Door swings into the room = inswing
    • Door swings toward you = outswing

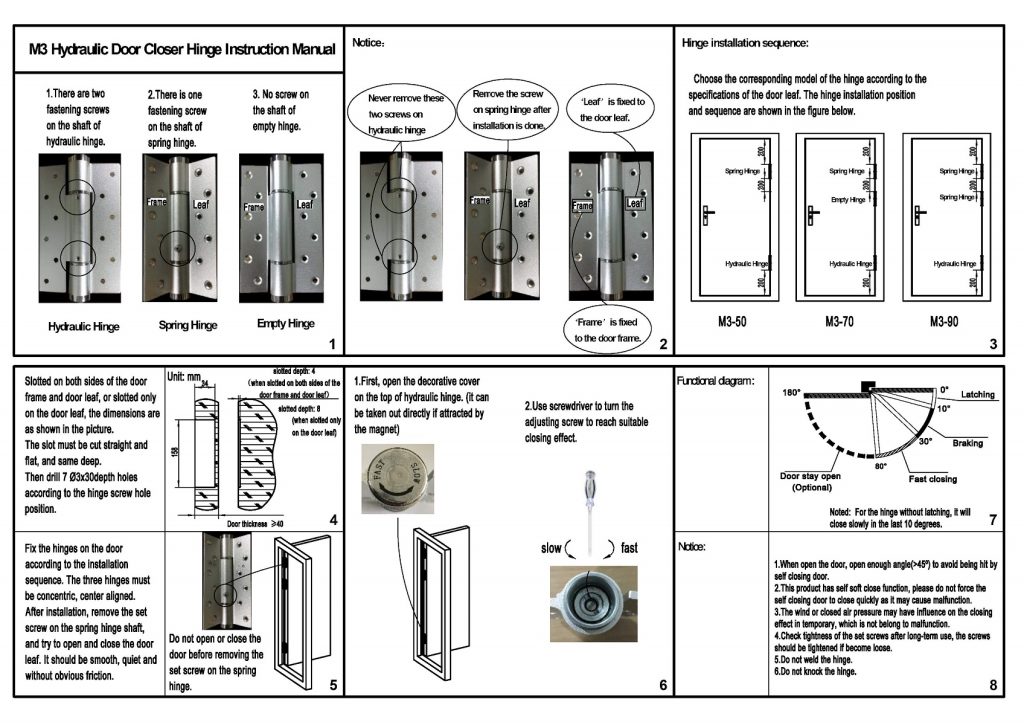

    M3 Hydraulic Door Closer Hinge Instruction Manual.pdf
